Instruction:
BZ25 standard pump head adopt crystal PC（Polycarbonate）housing. easy to watch the working status of the pump. and stable operation.
Features:
* Original design.
* Compact structure.
* Standard pump head。
* Suitable for OEM application
Specifications
|
Type |
Channel |
Rollers |
Suitable tubing |
Motor speed |
Referential flow rate |
Weight |
|
BZ15-14 |
1 |
3 |
14# |
600rpm |
150ml/min |
0.3Kg |
|
BZ15-16 |
16# |
489ml/min |
||||
|
BZ25A |
24# |
1630ml/min |

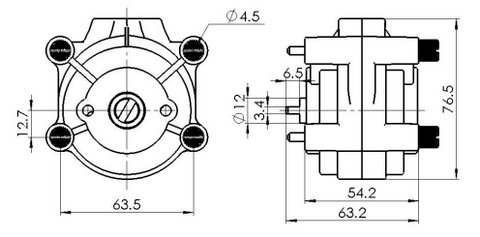

Installation Drawing:
Please contact us via email: info@lkepump.com, if you need any technical assistance.
