DMD1513 Peristaltic Pump Head
Regular price
$300.00
Sale
Instruction:
Special design of tubing retention, easy to load tubing. Special structure to reduce pulsation efficiently and improve the precision. high accurate micro quantity filling
Features:
Improved design of tubing clamp, easy to load tubing
Combined 2 tubes to reduce pulsation
Can work as 2 independent channels
Specifications:
| Type | Motor speed(rpm) | Suitable tubing | Prime flow rate(ml/min) | Filling volume(ml) | Filling time(s) | Repeatable errors | ID of filling nozzle(mm) |
|
DMD1513 |
≤600 | 2×13# | 80 | ＞0.8 | ＞0.6 | ±2% | ≤0.5 |
| ＞1.6 | ＞1.2 | ±1% | ≤0.5 | ||||
| 4×13# | 160 | ＞1.6 | ＞0.6 | ±2% | ≤1.0 | ||
| ＞3.2 | ＞1.2 | ±1% | ≤1.0 | ||||
| 2×14# | 300 | ＞3 | ＞0.6 | ±2% | ≤1.0 | ||
| ＞6 | ＞1.2 | ±1% | ≤1.0 | ||||
| 2×19# | 620 | ＞6.2 | ＞0.6 | ±2% | ≤1.5 | ||
| ＞12.4 | ＞1.2 | ±1% | ≤1.5 | ||||
| 2×16# | 960 | ＞9.6 | ＞0.6 | ±2% | ≤2.0 | ||
| ＞19.2 | ＞1.2 | ±1% | ≤2.0 | ||||
| 2×25# | 2070 | ＞20.7 | ＞0.6 | ±2% | ≤3.0 | ||
| ＞41.4 | ＞1.2 | ±1% | ≤3.0 | ||||
| 2x17# |
2600 | >25 |
＞0.6 | ±2% | ≤3.0 | ||
| >50 | ＞1.2 | ±1% | ≤4.0 |

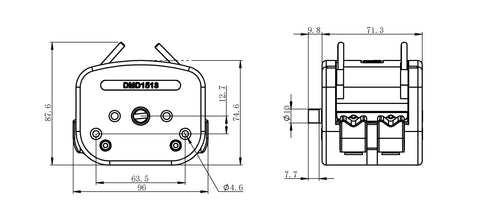

Installation Drawing:
Please contact us via email: info@lkepump.com, if you need any technical assistance.
