Peristaltic Pump Head YZ1515x
Regular price
$173.00
Sale
$280.00
Instruction:
YZ1515 peristaltic pump head is suitable for different tubing to provide a flow range from 0.07ml/min to 2200ml/min.
Features:
| * Self-adapting Tubing Clamper |
| * Quick & Easy Load Tubing |
| * Leakage Sensor Optional |
| * Reed Switch Sensor Optional |
Specifications
| Model | Speed (rpm) | Roller Material | Housing Material | Tubing | Max.Flowrate (ml/min) | Weight(kg) |
| YZ1515x-A | ≤600 | Stainless | PESU | 13# 14# 19# 16# 25# 17# 18# | 2200 | 0.4 |
| YZ2515x-A | 15# 24# | 1600 |

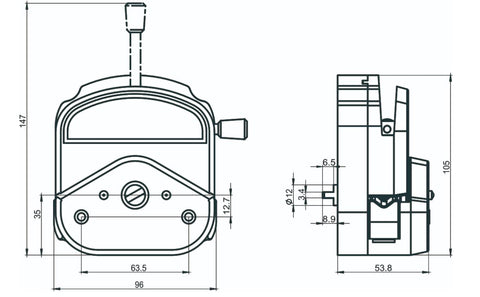

Installation Drawing:
* Please contact us via email: info@lkepump.com if you need any technical assistance, we will suggest one kind suitable product for your application.
