Instruction:
MT series multi-channels peristaltic pump heads are specially designed for providing small and accurate flow rate. Suitable for lab applications. in.
Features:
| * Self-adapting Tubing Clamper |
| * Quick & Easy Load Tubing |
| * No need to adjust the cartridge, tolerance less than 5% |
| * Metal pump head housing |
Specifications
| Type | Channel | Roller | Tubing |
Speed | FlowRate |
| DG0106 | 1 | 6 |
ID≤3.17mm WT.≤1mm |
≤150rpm | >70ml/min |
| DG0206 | 2 | ||||
| DG0406 | 4 | ||||
| DG0606 | 6 | ||||
| DG1206 | 12 | ||||
| DG0110 | 1 | 10 |
>48ml/min |
||
| DG0210 | 2 | ||||
| DG0410 | 4 | ||||
| DG0610 | 6 | ||||
| DG1210 | 12 |

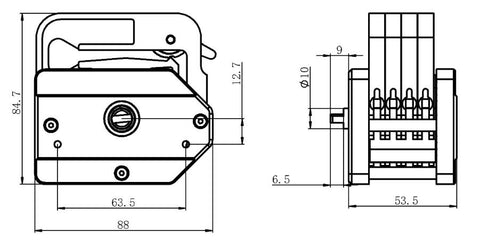

Installation Drawing:
